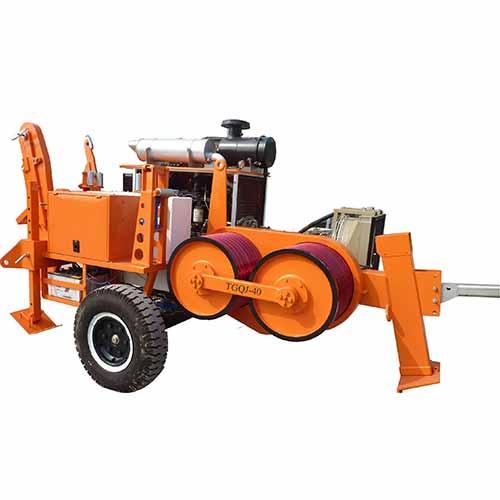

TGQJ-40 PULLING TYPE HYDRAULIC PULLER

The device can meet the use of mountain, hilly terrain for stringing single division conductor of 110KV,220KV.Also can be used for the OPGW or ADSS fiber optic cable in all-terrain traction

release. Available for traction release of 500kv traction rope in a variety of terrain.

PERFORMANCE PARAMETER

STRUCTURE PARAMETER

Max force

40KN

Bullwheel diameter

400mm

Max continous pulling force

35KN

Groove number

7

Corresponding Speed

2.5km/h

Max diameter of pilot rope

16mm

Max continuous pulling speed

5km/h

Total weight

2600kg

Corresponding pulling force

17.5KN

Overall dimension(L×W×H)

3600×1800×2300(mm)

ENGINE

Cummins 4BT,diesel engine,60KW/2000rpm;Electric system,24V(with pulling force overload protection)

HYDRAULIC TRANSMISSION

Closed hydraulic circuits for stepless speed variation in both rotating directions.

This machine is provided with pull pre-setting systems that maintain the pre-set pulling value (also

when the speed is reduced to “0”) by automatically adjusting the operation speed according to the

friction and unexpected loads which may develop along the line.

CONFIGURATION

Negative self-acting hydraulic brakes.

Hydraulic dynamometers with set-point and automatic control of maximum pull.

Hydraulic oil cooling system.

Control instruments for hydraulic system and Diesel engine.

Rigid axle for towing at max speed of 30 km/h with mechanical parking brake.

Built-in self-loading reel winders with automatic level wind, suitable for standard reel mod.

Hydraulically actuated front plough stabilizer.
