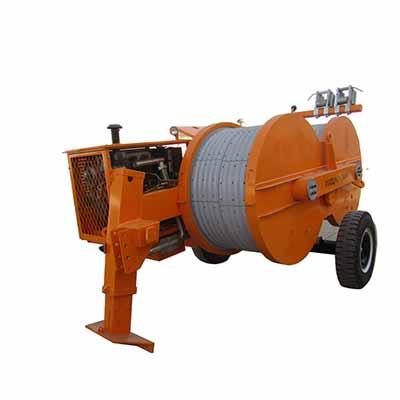

TGZLJ 40×2 PULLING TYPE HYDRAULIC TENSIONER

The equipment can be used for the tension laying of double split LGJ-400 in the mountain and hill,the

double split LGJ-630 and the below in the plain areas,the OPGW and ADSS in variety of terrain, and the 500kv traction rope in variety of terrain. Self-propelled tension machine can bring convenience for transportation.

PERFORMANCE PARAMETER

STRUCTURE PARAMETER

Max intermittent tension

80KN or 2×40kN

Tension wheel diameter

1500mm

Max continuous tension

70KN or 2×35kN

Groove number

5

Corresponding Speed

2.5km/h

Max diameter of conductor

40mm

Max continuous speed

5km/h

Dimension(L×W×H)

4000×2100×2500(mm)

Corresponding tension

35KN or 2×17.5kN

Total weight

5300kg

Max pull back force

70KN or 2×35kN

ENGINE

COMMINS diesel,77kw/2800rpm,4BT,water cooling system

HYDRAULIC TRANSMISSION

Hydraulic closed circuits that allow very sensitive tensioning control and negligible deviations of tension

in case of speed change.

The machine is provided with tension pre-setting system.

CONFIGURATION

Negative self-acting hydraulic brakes.

Hydraulic dynamometers.Hydraulic oil cooling system.

Digital meter counters.Digital speed-meters.

Control instruments for hydraulic system and Diesel engine.

Rigid axle for towing at max speed of 30 km/h with mechanical parking brake.

Hydraulically actuated front plough stabilizer.

Hydraulic power pack to control reel stands with hydraulic head controls.

OPTIONAL

Pull back function and power pack.
