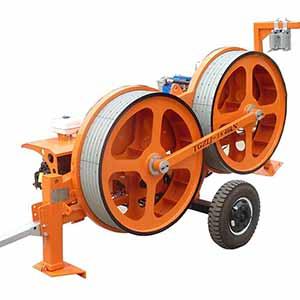

TGZLJ 1X40 PULLING TYPE HYDRAULIC PULLER TENSIONER

The equipment can be used for the tension laying of 220kv double split LGJ-300 in the mountain and hill,

the 220kv LGJ-400 and the below in the plain areas,the OPGW and ADSS in variety of terrain,and single-conductor wire LGJ-500 and the below in mountain and hill areas.

PERFORMANCE PARAMETER

STRUCTURE PARAMETER

Max intermittent tension

1X40 kN

Tension wheel diameter

1200mm

Max continuous tension

1X35 kN

Groove number

5

Corresponding speed

2.5km/h

Max diameter of conductor

32mm

Max continuous laying speed

5km/h

Dimension(L×W×H)

3400×1800×2400(mm)

Corresponding tension

17.5kN

Total weight

2800kg

Max pull back force

1X35KN

ENGINE

Deutz,air cooling system,51kw/2500rpm

Electric system 24V

HYDRAULIC TRANSMISSION

Hydraulic closed circuits that allow very sensitive tensioning control and negligible deviations of tension in case of speed change.

The machine is provided with tension pre-setting system.

CONFIGURATION

Negative self-acting hydraulic brakes.

Hydraulic dynamometers.Hydraulic oil cooling system.

Digital meter counters.Digital speed-meters.

Control instruments for hydraulic system and Diesel engine.

Rigid axle for towing at max speed of 30 km/h with mechanical parking brake.

Hydraulically actuated front plough stabilizer.

Hydraulic power pack to control reel stands with hydraulic head controls.

OPTIONAL

Pull back function and power pack
